M340

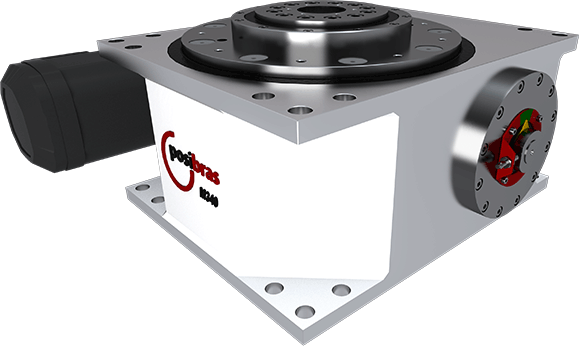

Our M340 rotary indexing table is designed for heavy applications that require heavy loads.
It can be installed horizontally, vertically or inverted (upside down).
Ideal for applications such as:
– robotic welding stations
– presses
– pallets displacements
– special machines

Mesa indexadora M340



Technical details

Diameter of the turntable:340 mm
Diameter of the through hole:60 mm
Direction of rotation:clockwise , anticlockwise or alternating both
Number of steps per revolution:Indexado cam model: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 20, 21, 22, 24, 26, 27, 28, 30, 32, 33, 36 (others upon request), or
Continuous cam model
Motor voltage:220 V / 380 V / 440 V
Motor frequency:50 Hz / 60 Hz
Motor power:0.55 to 4 KW
Weight without gearmotor:175 Kg
Weight with gearmotor:255 Kg (may vary according to the selected gearmotor)
Indexing accuracy:±0.012 mm. Radius 50 mm ~ 0,00059″. Radius 2″
Repeatability accuracy:±0.006 mm. Radius 50 mm ~ 0,00059″. Radius 2″
Inductive sensor:PNP NO (10 V to 36 V)

Loads

To select which model will be used in your project, it is necessary to know in addition to the loads below, also the moment of inertia of the set that will be moved, the time in seconds for positioning and the number of stations (stops). Example: Moment of inertia 12Km2, speed 1.5 seconds, 12 stations.
Click on the Get a quote menu or contact us to help us identify this data.

Carga AxialA- Maximum axial load (*):
It represents the total mass distributed evenly over the turntable (or total weight) (*) – the maximum total load refers to forces on the turntable. This does not mean that the indexing table will be able to rotate such mass, as rotation depends on three factors:

  • angular displacement (or number of stations)
  • angular velocity / acceleration
  • total moment of inertia (masses and distance the masses are from the center of the turntable)
7.000 Kg

Carga Radial

B- Maximum radial load:
Represents forces perpendicular to the center of the rotating plate, usually exerted by actuators outside the indexing table, aligned with the center of this plate.		1.300 Kg
Torque Vertical

C- Maximum vertical torque:
It represents the unbalance of masses on the turntable, or the twisting of this turntable usually caused by actuators outside the indexing table that exert axial force on only one side of the turntable.		10.000 Nm
Torque Horizontal

D- Horizontal maximum torque:
represents external forces in the direction of rotation of the indexing table, forcing the turntable to rotate or stop rotating.		3.500 a 6.800 Nm

 Main dimensions

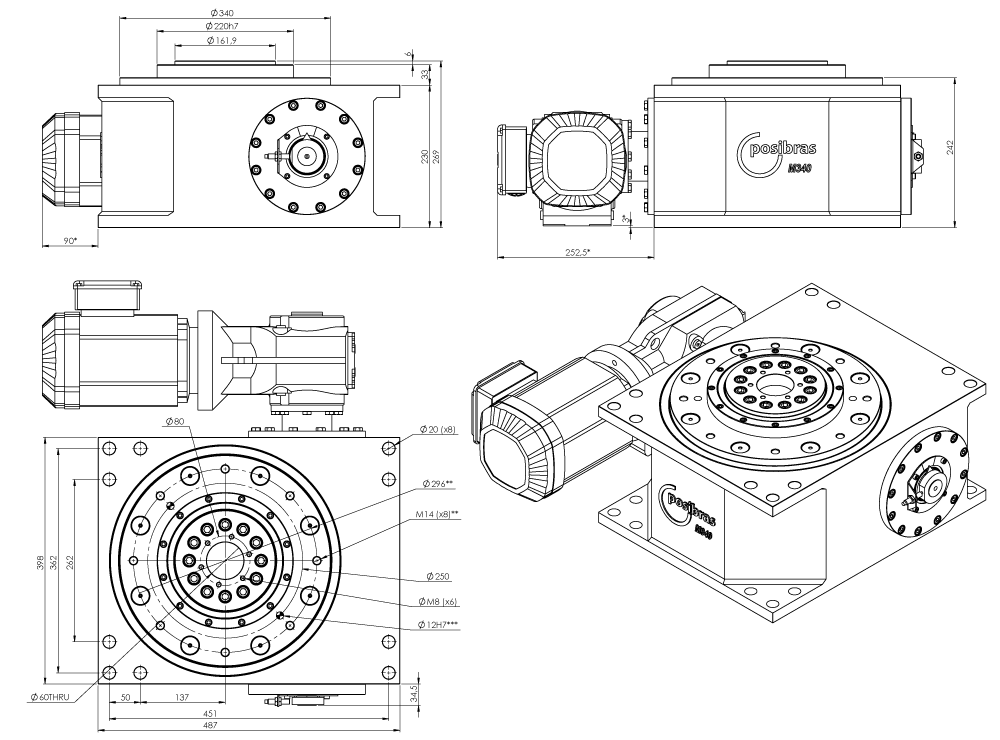

M340_2D

em milímetros

(*) – Measurements may vary depending on gearmotor attached to indexing table

(**) – Center radius and diameter of threaded holes may vary with number of stations

(**) – location of guide holes may vary according to number of stations

A Posibras se reserva no direito de alterar as características dos produtos a qualquer momento.
Por favor entrar em contato para confirmar as especificações técnicas.

Gearmotor mounting position

Posicao de montagem

Download 3D files (STEP format)

Mounting positionInstalled gearmotornumber of threaded holesFile
D1KA47DRE90M4BE209M340_SEW_KA47DRE90M4BE2_D1_09
D1SEW_KA57DRE90L409M340_SEW_KA57DRE90L4_D1_09
D1KA57DRE112M4BE508M340_SEW_KA57DRE112M4BE5_D1_08
D1KA57DRN90L407M340_SEW_KA57DRN90L4_D1_07
D1KA57DRN90L410M340_SEW_KA57DRN90L4_D1_10
D1KA57DRS71S408M340_SEW_KA57DRS71S4_D1_08
D1KA57DRS71S408M340_SEW_KA57DRS80S4_D1_08
D1KA57R37DRN71MS408M340_SEW_KA57R37DRN71MS4_D1_08
D1KA67DRS71S408M340_SEW_KA67DRS71S4_D1_08
D1KA67DRS71S409M340_SEW_KA67DRS71S4_D1_09
D1KA67DRS71S410M340_SEW_KA67DRS71S4_D1_10
D1KA67DRS71S414M340_SEW_KA67DRS71S4_D1_14
D1KA67DRS71S409M340_SEW_KA67DRS80S4_D1_09
